No. WW-A0416-inch Eight-Hole Implement Wheel
WW-A05 · Implement and flotation wheels

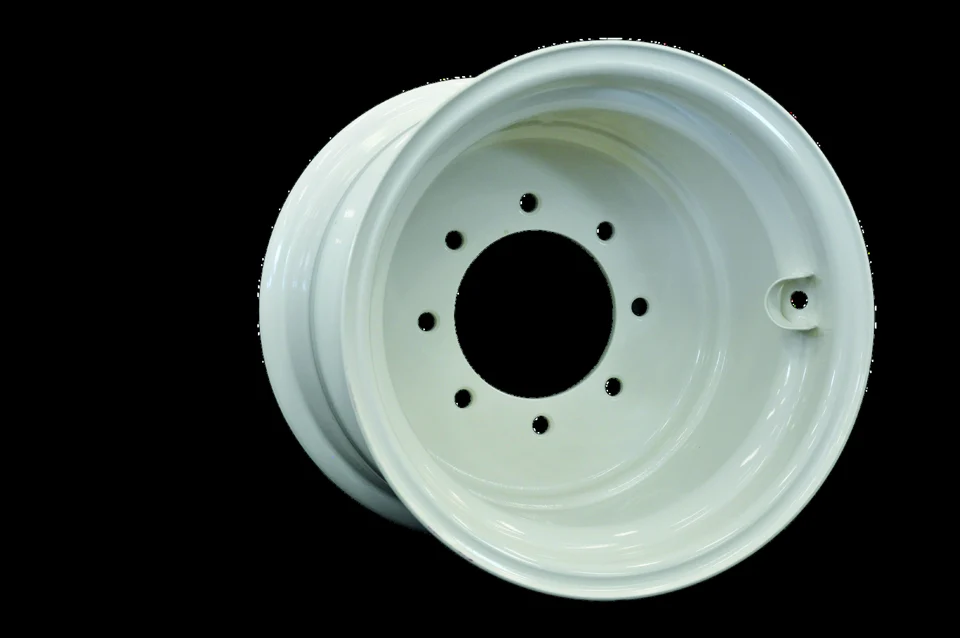

16.1-inch Flotation Implement Wheel
Compatible implements, wagons and agricultural service applications.
| Wheel / rim size | 16.1 x 14 in (408.94 x 355.6 mm) |
|---|---|
| Bolt pattern | 8 x 8.000 in (8 x 203.2 mm) |
| Center bore / offset | Equipment-specific |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
Formed steel rim welded to an agricultural mounting disc.
Options
Coating, mounting disc, valve location and validated load/speed specification.
Size options
16.1 x 14 in (408.94 x 355.6 mm); 16.1 x 16 in (408.94 x 406.4 mm)
Procurement Value
Stable agricultural interfaces and standard forming tools support recurring parts orders.
Mounting & Selection
Machine/model, rim contour, bolt circle/bore, disc offset, track width, load/speed, valve location and corrosion exposure.
Standards & Qualification
TRA/ETRTO rim contour reference and equipment-specific load/speed validation. Standard rim size does not establish machine interchangeability.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
